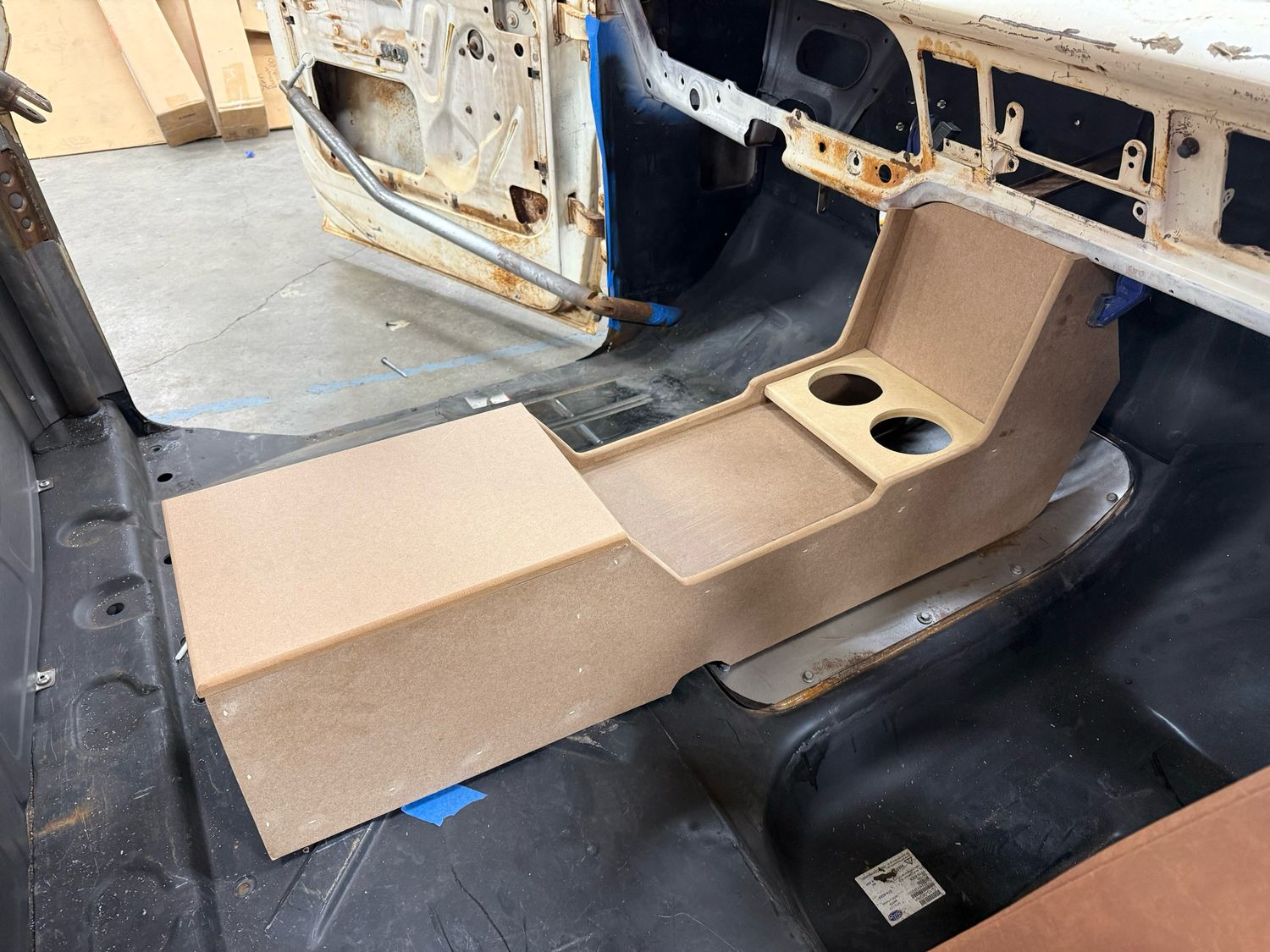

1967-72 F100 Center Console Kit for Bucket Seats

Console kit is shipped in pieces and that allows us to cut shipping cost by 75%. It also allows the panels to be easily modified before assembly. Stainless steel cup holders are included.

There is a pattern drawn on the inside of both side panels that shows where to install the center panels. Using the pattern, drill holes so the screws don’t split out the wood. Set one of the side panels down on a table, then start sitting the center pieces in place and screw them and glue them to the side panel. Then Install the other side panel. The hinges go on the back of the console for the storage compartment door.

The console can be bodyworked, primered, and painted just like the body of the vehicle. The panels are made out of half inch MDF.

The console kit was designed using a cab with low hump floor, but it can be trimmed to fit a high hump floor.

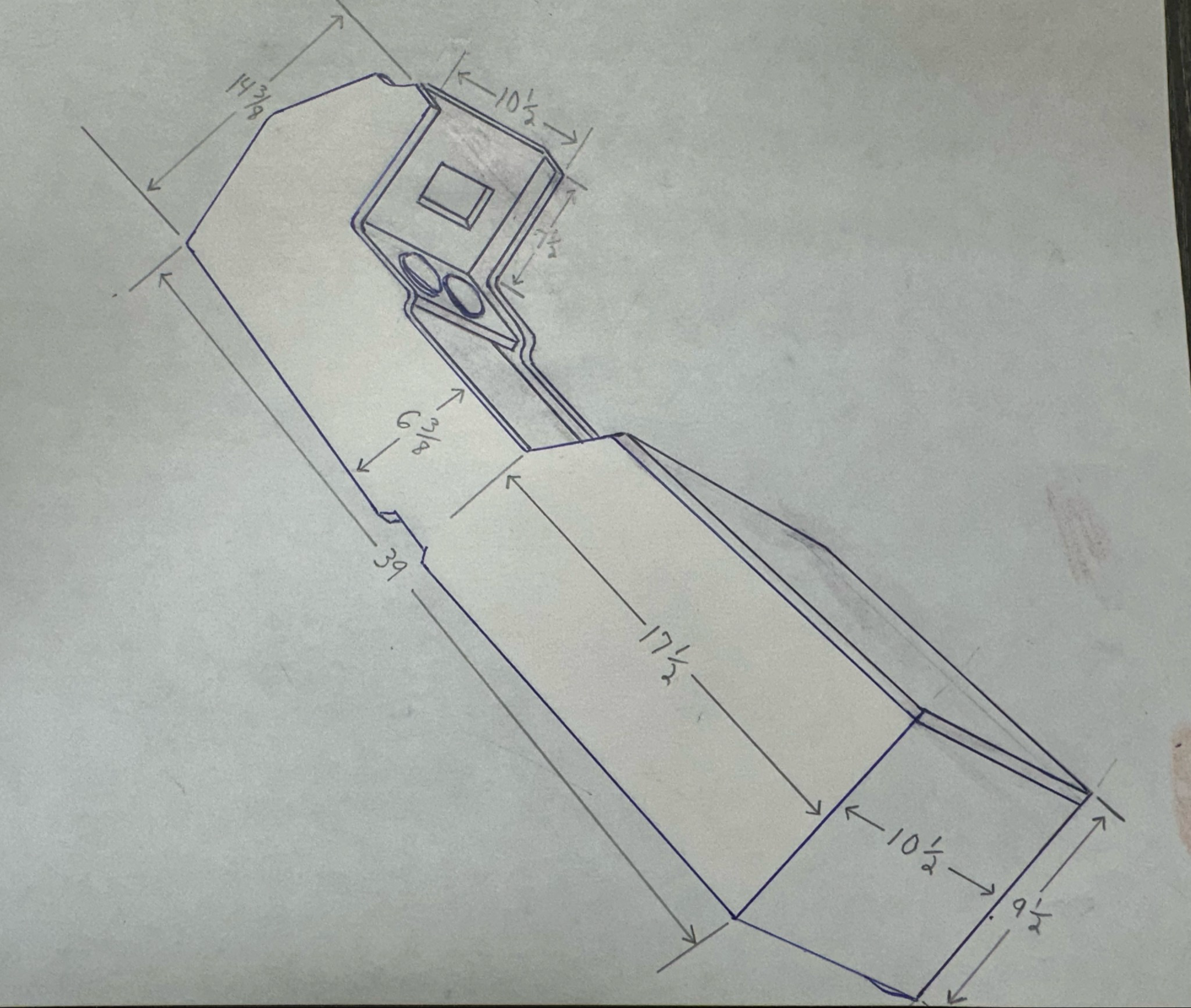

See measurements below
