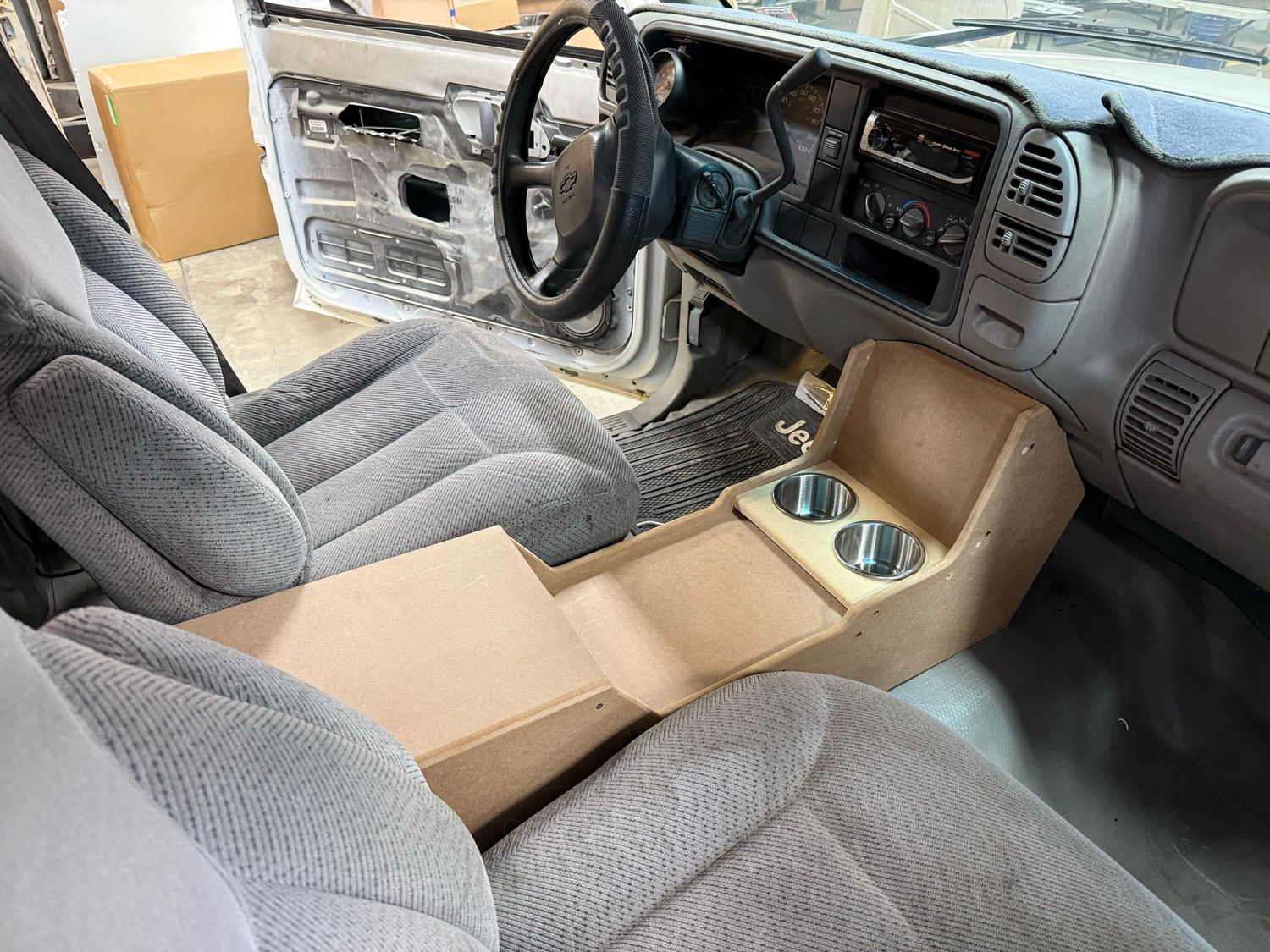

1988-98 Chevy/GMC Truck Center Console Kit for Bucket Seats

Console kit ships and pieces and this allows us to cut shipping cost by 75%. It also makes it easier to modify the panels before assembly.

The pattern to put the console together is drawn on the inside of each side panel. Lay a side panel on your table and then put the center panels in place using the drawnout pattern. You’ll want to pre-drill holes so you don’t split out the wood. I like to do all of my modifications and screw the console together and test fitted into the vehicle, then I take it apart apply glue to all the edges and then screw it back together. Once the glue has cured, I removed the screws and fill the holes.

The console can be bodyworked, and primered and painted just like the body of the vehicle.

Stainless steel cupholders, and the hinges for the storage compartment door are included.

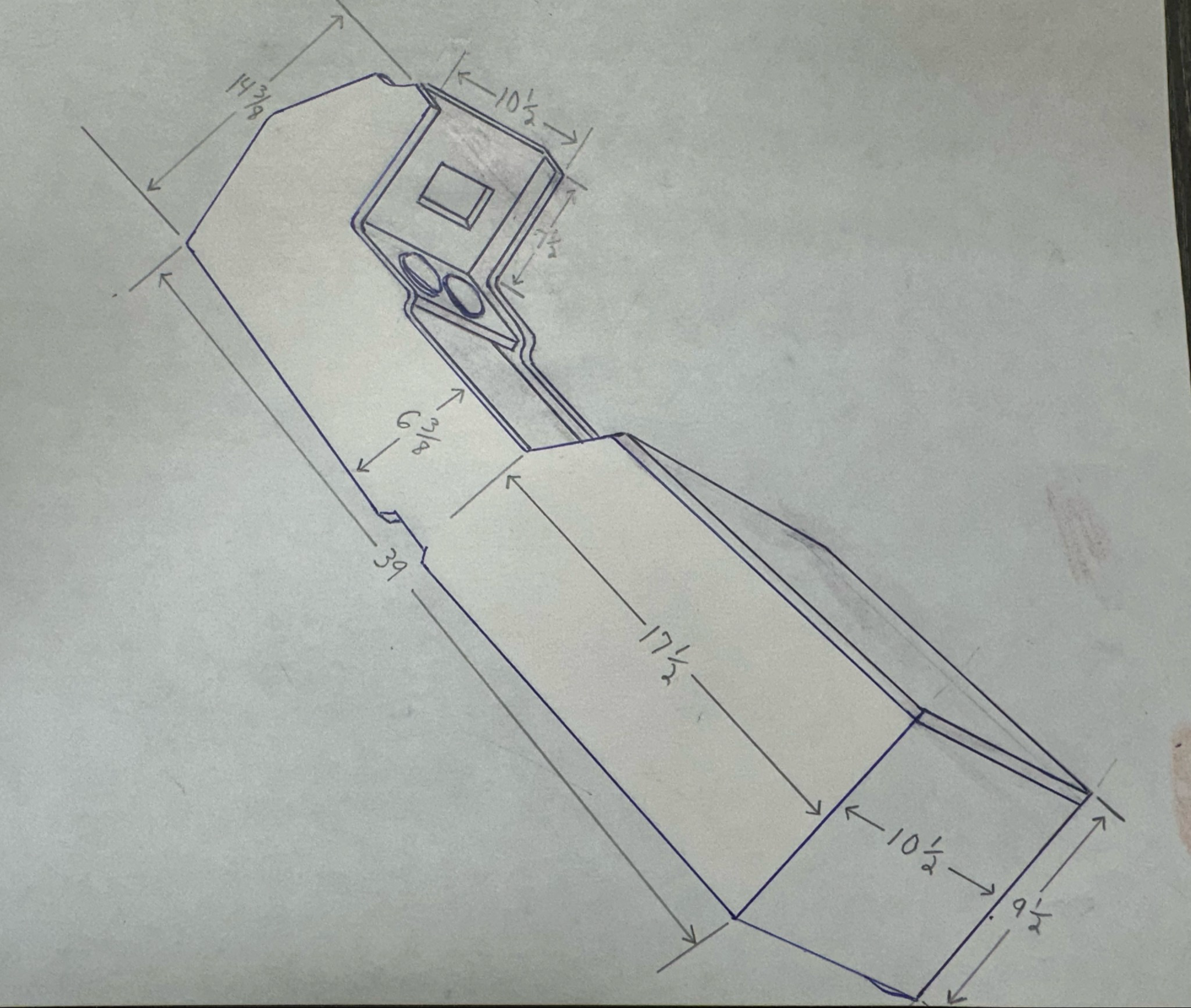

See below for measurements
