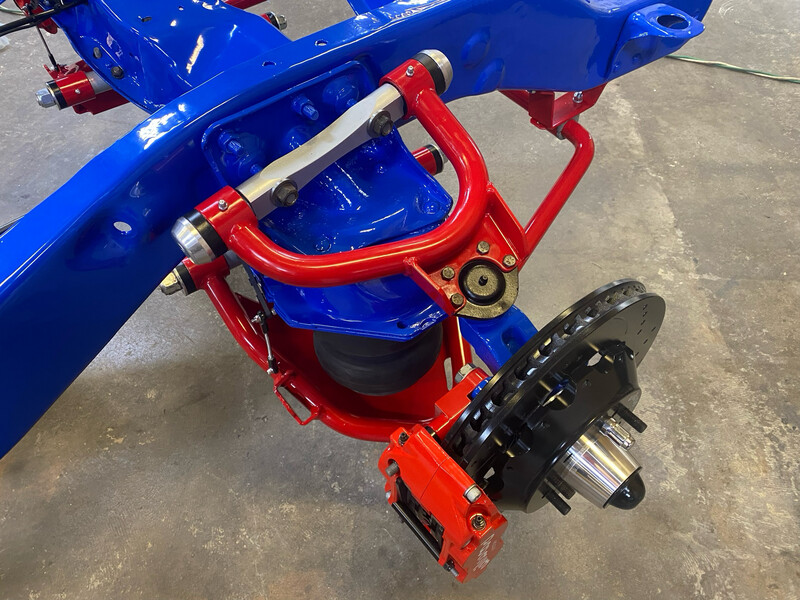

Porterbuilt Control Arms 1963-87 C10-C30

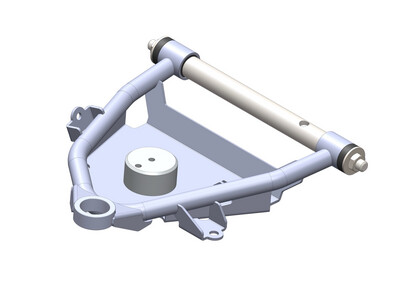

Price is for drivers side and passenger side upper and lower control arms, bushings, and pivot shafts. Ball joints are an option. Pick the ball joints that match the year of your spindles.

Control arms fit 1963-87 C10’s.

When running an anti sway bar you will need to run one that is 41” long.

Control arms fit factory crossmember only.

I keep the C10 control arms in stock, but I have the C30 control arms drop shipped. I don’t sell enough of them to stock them. They are a usually 6-8 week build time.

1” forward and 1” narrowed are what I stock. Anything else will be drop shipped from Porterbuilt.

Since the control arms are one inch narrower than stock, you will need to shorten the tie rods and adjustment sleeves so your tires won’t toe out.

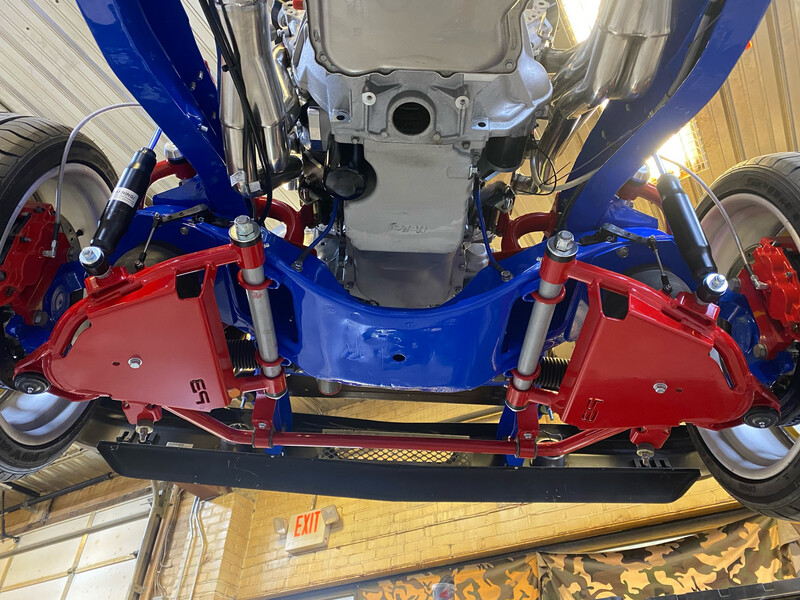

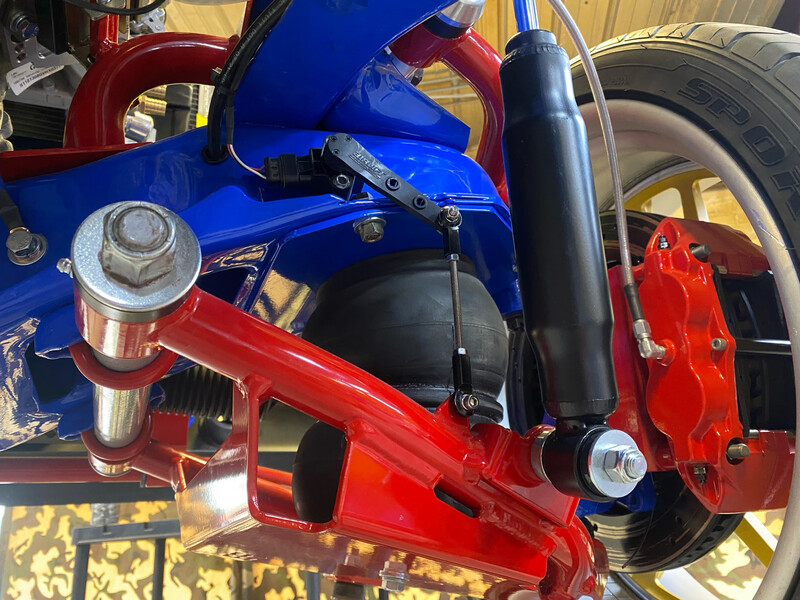

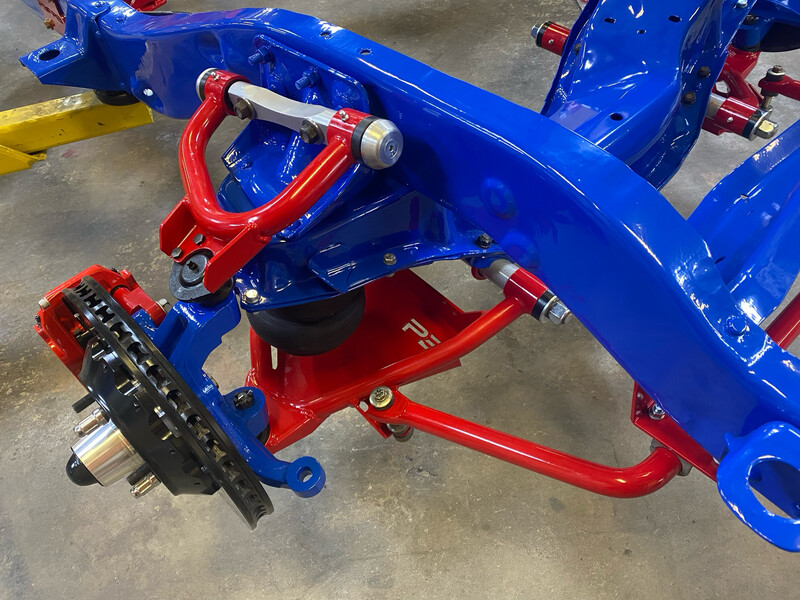

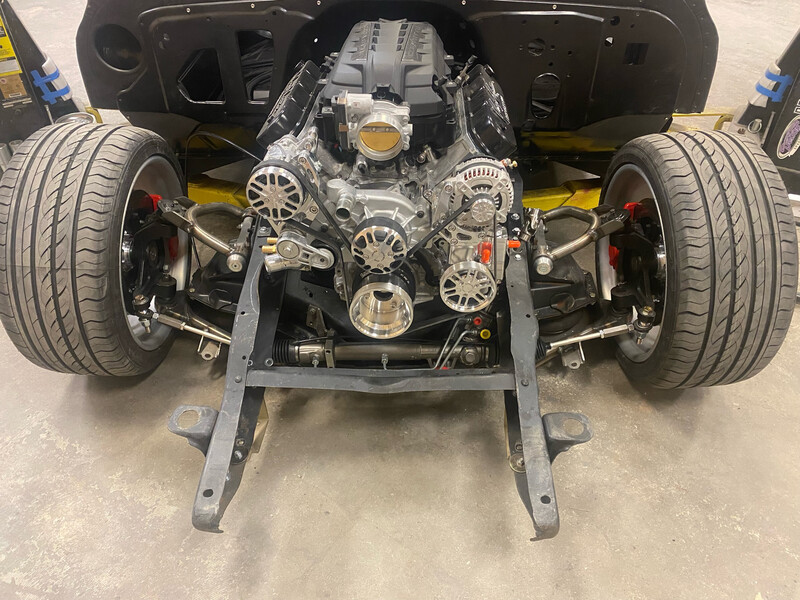

On my blue C10 I’m running a 20x10 wide wheel with a 6” backspacing and it tucks perfectly. On my red C10 I’m running a 20x9 with 4.5” backspacing and it tucks perfectly.
